Car TPMS Tire Pressure Monitor System: LCD Real-Time Monitoring with Pressure & Temperature Alerts

Upgrade your vehicle’s safety with the Car TPMS Tire Pressure Monitor System. This advanced system provides real-time tire pressure and temperature monitoring, ensuring you stay informed about your vehicle’s tire health and maintain optimal driving conditions. Suitable for a wide range of vehicles, including cars, SUVs, trucks, and more, this system combines convenience with high-precision monitoring.

Key Features

1. Comprehensive Alarm System

• Real-Time Monitoring: The TPMS system tracks tire pressure and temperature continuously, alerting you to any issues such as leaks, high or low pressure, and abnormal temperatures.
• Instant Alerts: Audible and visual alerts help you address potential tire issues promptly, enhancing your safety on the road.

2. Convenient Power Supply

• Direct Power Connection: The system is powered directly via the cigarette lighter socket, eliminating the need for constant recharging. Simply plug it in and it’s ready to go.

3. User-Friendly Installation

• Pre-Configured Sensors: Sensors are pre-configured with the display before shipment. Upon receiving the product, you can start using it immediately without additional setup.

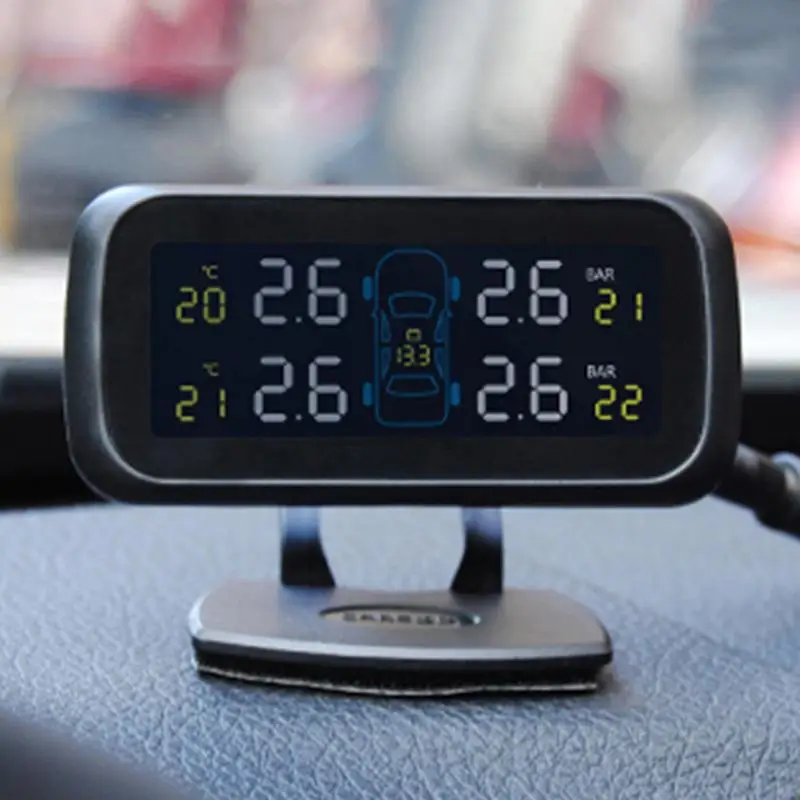

4. Clear LCD Display

• Bright Backlit Screen: The large, LCD display offers clear visibility of tire data, day or night. Its wide-angle view ensures you can easily read the information without distraction.

5. Versatile Application

• Wide Vehicle Compatibility: Ideal for passenger cars, SUVs, commercial vehicles, MPVs, minivans, and trucks. This system is designed to meet the needs of various vehicle types.

Specifications

Display Unit:

• Operating Temperature: -20°C to +80°C
• Storage Temperature: -30°C to +85°C
• Input Voltage: DC 8V–16V
• Frequency: 433.92 MHz

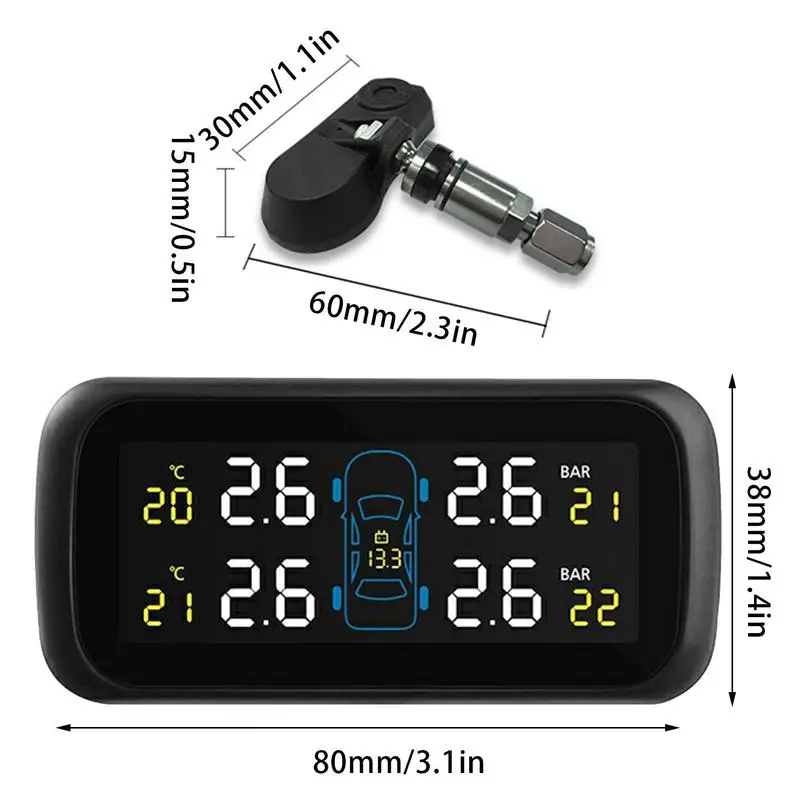

• Dimensions: 80 x 38 x 12 mm
• Weight: 39.0 g

External Sensors:

• Operating Temperature: -20°C to +100°C
• Pressure Range: 0–116 psi (0–8 bar)
• Pressure Accuracy: ±1.5 psi (±0.1 bar)
• Temperature Accuracy: ±3°C
• Battery Model: CR1632
• Battery Life: Over 3 years
• Dimensions: 15 mm height, 23 mm diameter
• Weight: 9.5 g

Internal Sensors:

• Operating Temperature: -40°C to +105°C
• Pressure Range: 0–116 psi (0–8 bar)
• Pressure Accuracy: ±1.5 psi (±0.1 bar)
• Temperature Accuracy: ±3°C
• Battery Model: CR2030
• Battery Life: 3–4 years
• Dimensions: 60 x 30 x 15 mm
• Weight: 58.0 g

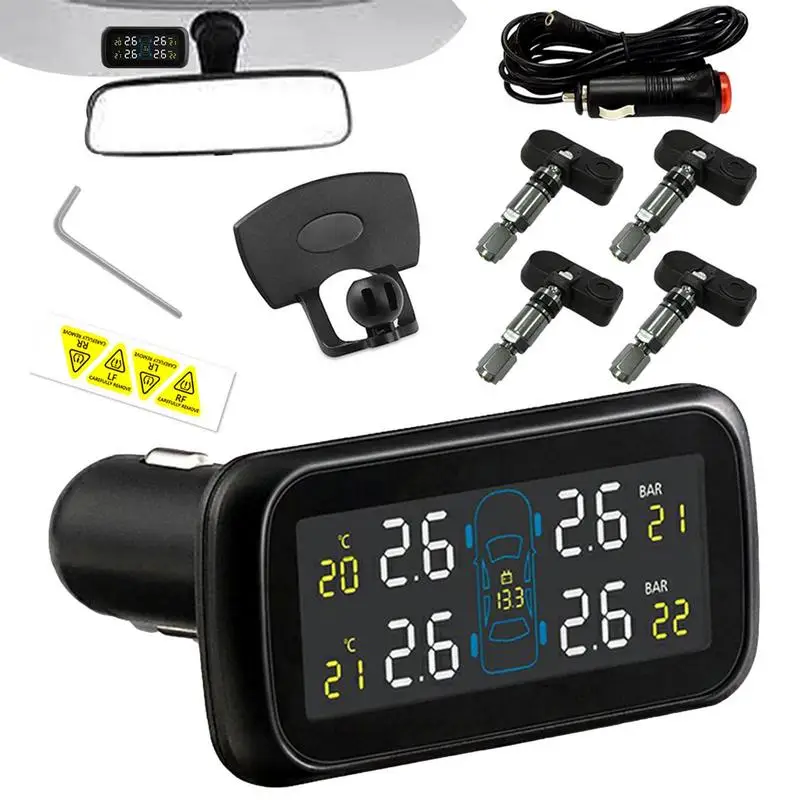

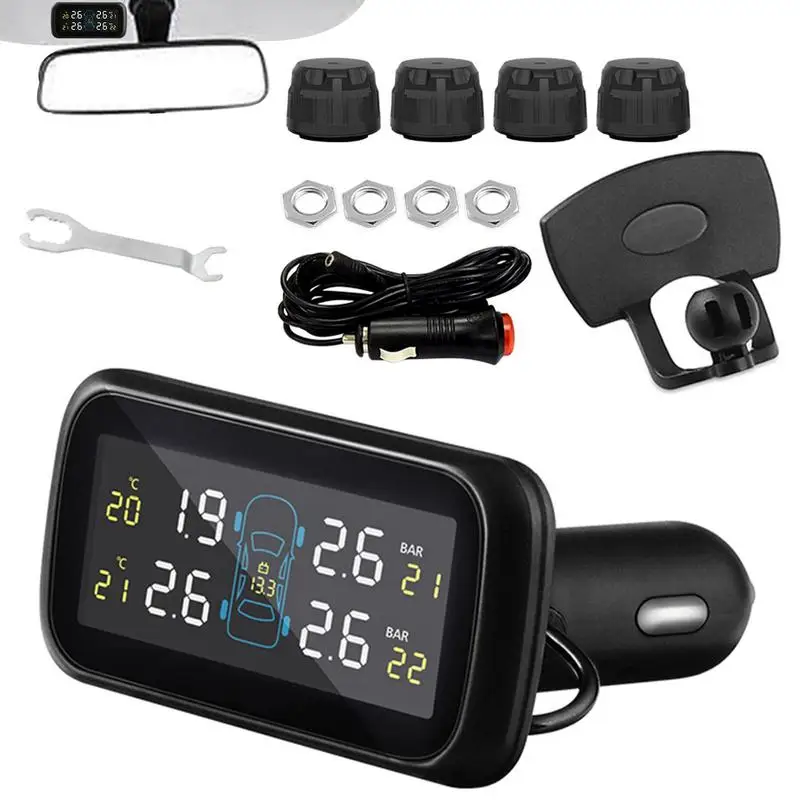

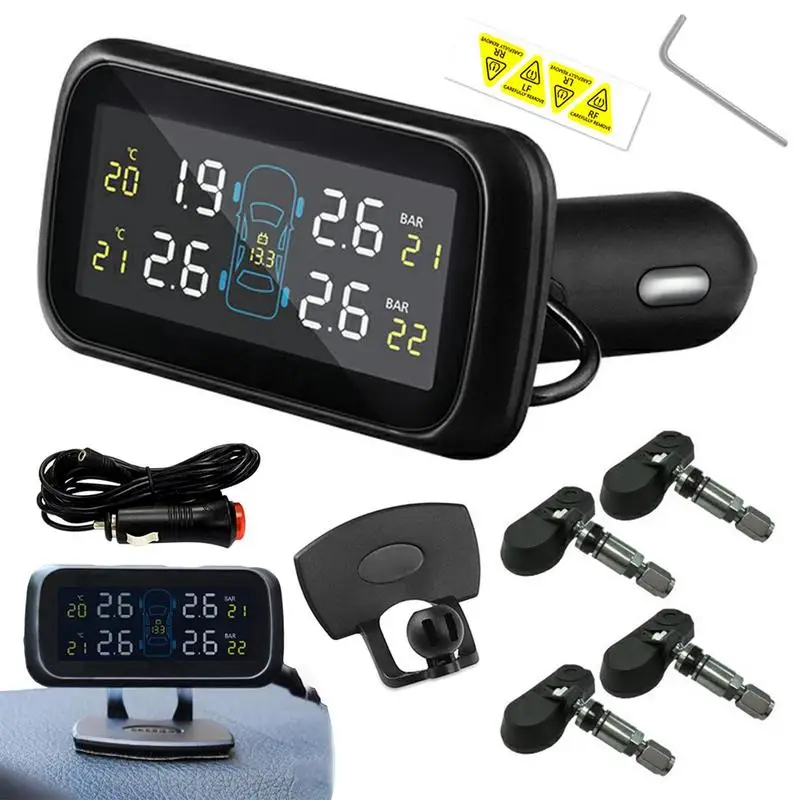

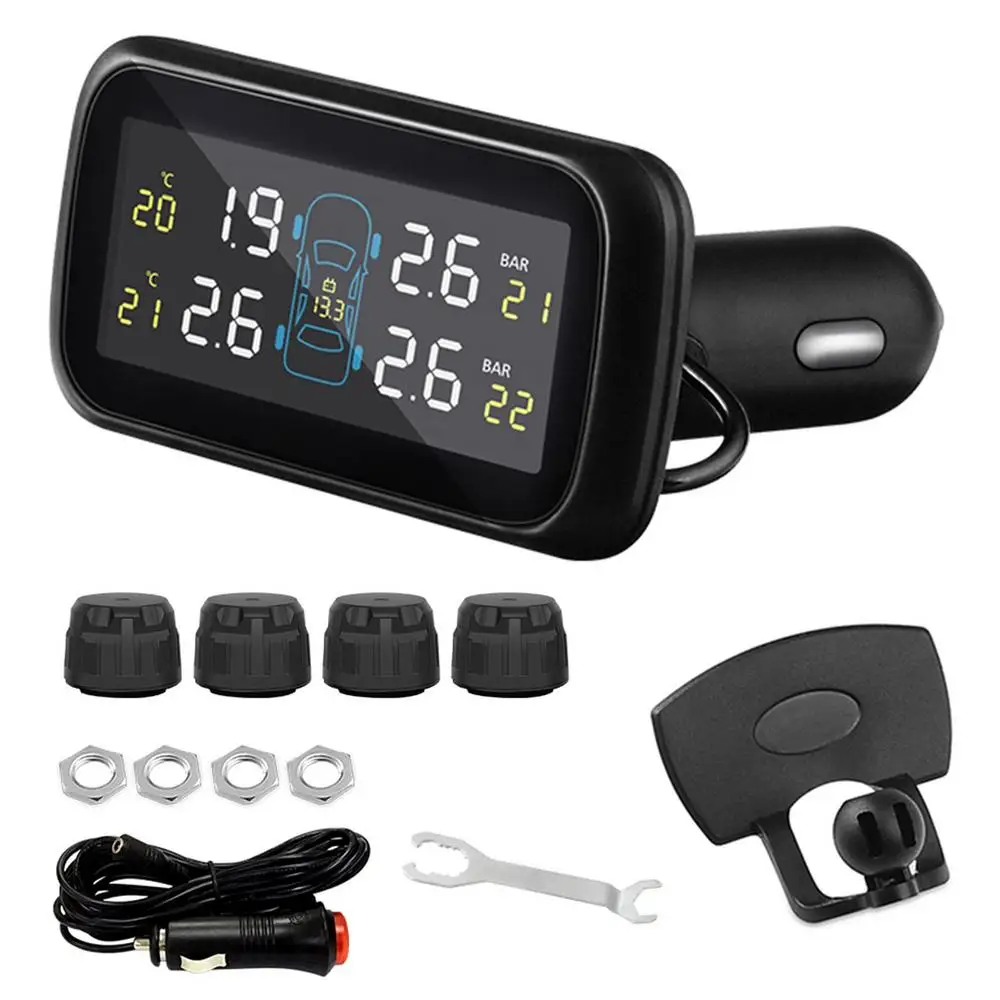

Package Includes

• 1 x TPMS Display
• 4 x TPMS Sensors
• 1 x Spanner
• 1 x Holder
• 1 x Cigarette Lighter Adapter
• 1 x Open Wrench
• 1 x Power Cable

Installation Instructions

1. Prepare the Tire: Loosen and deflate the tire by removing the valve cap and core.
2. Remove the Old Sensor: Use a screwdriver to detach the existing sensor and valve stem.
3. Install New Sensor: Insert the new valve stem through the rim hole, secure it with the provided screw-nut, and attach the sensor body.
4. Reinstall Tire: Fit the tire onto the rim, ensuring the valve faces the separation head at a 180-degree angle.

Notes

• Factory Pre-Configuration: The sensors come pre-configured with the display. Avoid making adjustments before familiarizing yourself with the product.
• Battery Replacement: Sensor batteries typically last 3–4 years. Replacement is simple with the correct battery model.
• Product Setup: The product is optimized before shipping, so it’s ready to use upon arrival. Avoid additional configuration unless necessary.

Enhance your driving safety and vehicle maintenance with the Car TPMS Tire Pressure Monitor System. Enjoy peace of mind knowing your tires are continuously monitored for optimal performance.
